Saver Sub

Application:Directional well drilling

Features:Rotary Sub

Material:AISI steel

Standard: API & ISO

Warranty:3 months

Usage: 300Hrs

Customized:Provide

Description
Parameter

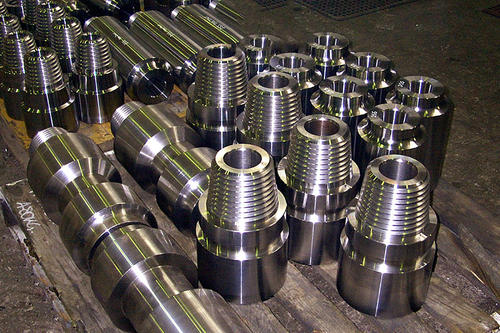

ROTATE Rotary Subs are made from AISI 4145H modified quenched and tempered material.

In addition, it is designed and manufactured according to API specifications as well as with API monogram. They can be used to crossover from connection size to another or as a disposable component used to extend the connection life of a more expensive drill stem member.

Virtually any type of sub can be manufactured to customer specifications.

When rods is added to increase the depth of drilling, the loosening of the threads are now performed at the bottom end of the Saver Sub as opposed to the bottom of the Kelly which is the most valuable part of the drill string.

This means that the connection between the top end of the Saver sub and Kelly is seldom used, and suffers minimal wear and tear, whereas the lower connection is used in almost all cases displacing the most wear and tear from the rotary head connection to the much cheaper Saver Sub which is expendable and reduce cost.
